R67減速電機的型號分類與應用說明

在工業設備中，R67系列減速機與減速電機被廣泛使用，其型號根據不同的廠家可能會有所差異。因此，若需要了解具體的型號參數，建議聯系廠家客服進行咨詢，以獲取更準確的信息。

以下是常見的R67減速電機型號列表，供參考：

R67DV63M4、R67AQA63M4、R67DT63M4、R67DRS63M4、R67DRE63M4、R67Y63M4

R67DV71M4、R67AQA71M4、R67DT71M4、R67DRS71M4、R67DRE71M4、R67Y71M4

R67DV80M4、R67AQA80M4、R67DT80M4、R67DRS80M4、R67DRE80M4、R67Y80M4

R67DV90M4、R67AQA90M4、R67DT90M4、R67DRS90M4、R67DRE90M4、R67Y90M4

R67DV100M4、R67AQA100M4、R67DT100M4、R67DRS100M4、R67DRE100M4、R67Y100M4

R67DV112M4、R67AQA112M4、R67DT112M4、R67DRS112M4、R67DRE112M4、R67Y112M4

R67DV132M4、R67AQA132M4、R67DT132M4、R67DRS132M4、R67DRE132M4、R67Y132M4

此外，還有以下R系列減速機型號可選：

R67DM63M4、R67AM63M4、R67YS63M4、R67YVP63M4、R67YEJ63M4、R67YB63M4

R67DM71M4、R67AM71M4、R67YS71M4、R67YVP71M4、R67YEJ71M4、R67YB71M4

R67DM80M4、R67AM80M4、R67YS80M4、R67YVP80M4、R67YEJ80M4、R67YB80M4

R67DM90M4、R67AM90M4、R67YS90M4、R67YVP90M4、R67YEJ90M4、R67YB90M4

R67DM100M4、R67AM100M4、R67YS100M4、R67YVP100M4、R67YEJ100M4、R67YB100M4

R67DM112M4、R67AM112M4、R67YS112M4、R67YVP112M4、R67YEJ112M4、R67YB112M4

R67DM132M4、R67AM132M4、R67YS132M4、R67YVP132M4、R67YEJ132M4、R67YB132M4

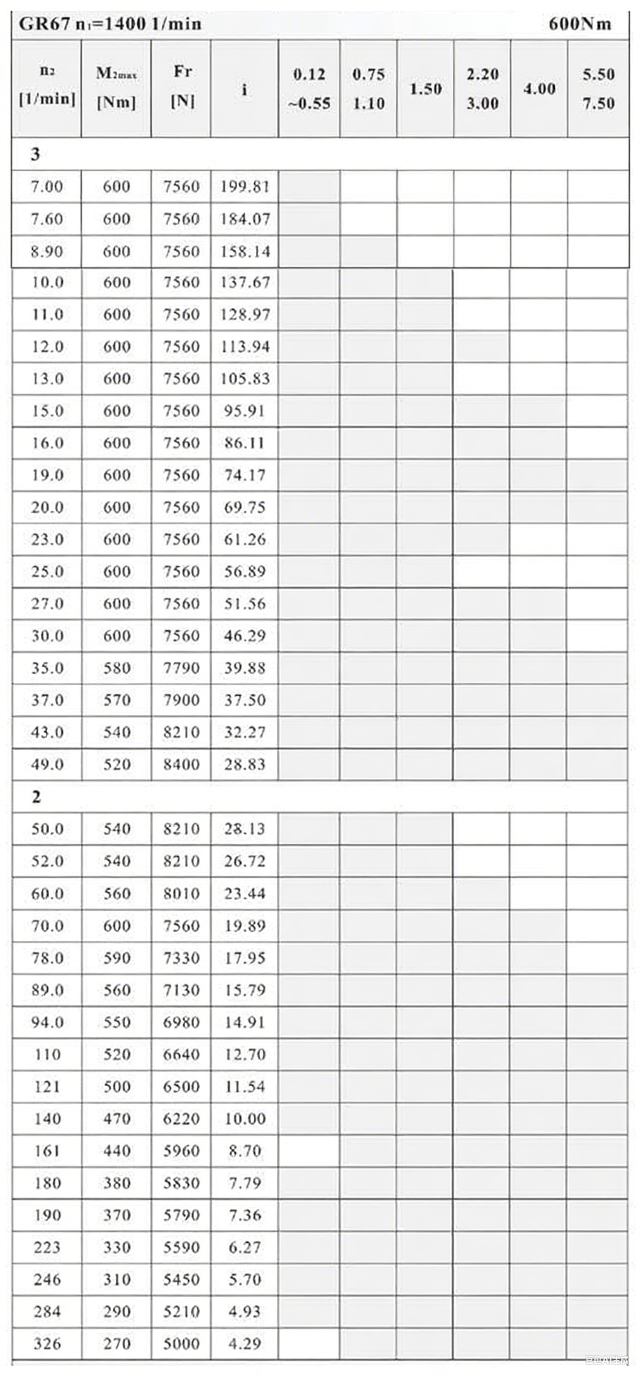

R67減速機可實現的減速比范圍

R67系列減速機支持的減速比包括：

1:4.29, 1:4.93, 1:5.70, 1:6.27, 1:7.36, 1:7.97, 1:8.7, 1:10, 1:11.54, 1:12.70, 1:14.91, 1:15.79, 1:17.95, 1:19.89, 1:23.44, 1:26.72, 1:28.13, 1:28.83, 1:32.27, 1:37.50, 1:39.88, 1:46.29, 1:51.56, 1:56.89, 1:61.26, 1:69.75, 1:74.17, 1:86.11, 1:95.91, 1:105.83, 1:113.94, 1:128.97, 1:137.67, 1:158.14, 1:184.07, 1:199.81

R67同軸斜齒輪減速機的性能參數

R67型同軸斜齒輪減速機可與0.12KW至7.5KW的電機進行配套使用，具體參數可通過配套配置圖進行查看。

比R67減速器小一個型號規格的是減速機R57

R67減速機具有以下顯著優點：

體積小、重量輕：便于安裝和搬運，節省空間。

效率高、功率大：能有效提升設備運行效率。

噪音小、運行平穩：適合對環境要求較高的場合。

安裝便捷、壽命長：減少維護成本，延長設備使用壽命。

結構緊湊、輸出轉速高：適用于多種工業場景。

傳動比大、傳動效率高：提升設備運行性能。

維修方便、密封性好：保障設備穩定運行。

承載能力強：適用于重載設備。

應用領域

R67減速機廣泛應用于以下行業：化工、食品、紡織、印染、制藥、建材、起重機械、輸送帶、玻璃設備

兼容性與靈活性

R67系列減速機具備良好的兼容性，可與多種控制系統和驅動裝置配合使用，適用于不同行業和復雜工況。同時，其安裝、調試和維護都較為方便，滿足多樣化需求。

R67的擴展型號

在R67系列之上，還有R77型號的減速機，適用于更大功率和更復雜的應用場景。
